Automatic solar power LED light

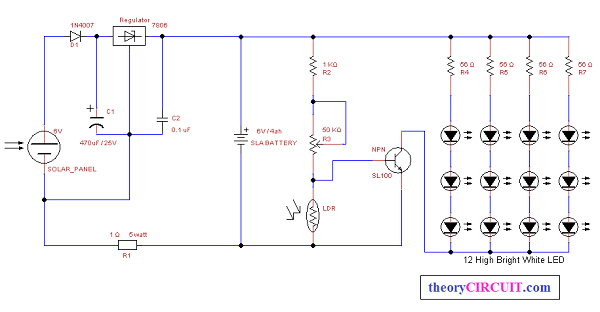

Automatic solar powered LED light can be used for Garden, outdoor, farm etc… this circuit constructed with 6V solar panel and 12 high bright white LEDs. You can use 6V/4Ah SLA battery this will get charged during day time though the solar panel power and during night time this battery acts as power source for LEDs.




The LDR placed in this circuit drives LED as off during day time and on during night time with the help of SL100 switching transistor.

Automatic-Solar-power-LED-light-new

Components List

S.No Name Quantity
1. Solar panel 6V 1
2. Regulator IC 7806 1
3. Diode 1N4007 1
4. LED white 12
5. LDR (photocell) 1
6. Resistor 1Ω/5watts
Resistor 1KΩ
Variable resistor 50KΩ preset
1
1
1
7. Transistor SL100 each 1
8. Capacitor 470µF/25V
0.1µF
each 1
